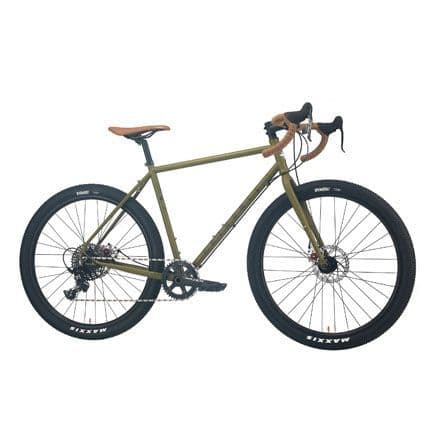

2023 Fairdale Weekender Nomad - Medium

Description

The Fairdale Nomad version of the Weekender is made to travel. While it can easily handle being a weekday commuter on rough city roads, it really shines when you take it for a long haul.

The Weekender Nomad’s 100% 4130 chromoly frame and fork will welcome virtually anything that you can throw at it. This is our top of the line Weekender, and it comes equipped with an amazing parts build, like a SRAM Apex 1x derailleur and shifter, Avid disc brakes, SRAM Apex 1 cranks and Maxxis semi-knobby tires.

The MX features the Weekender’s redesigned geometry that is built around 27.5 x 2.1" tires, and also leaves plenty of space for compatibility with 700c wheels if you ever feel like changing it up.

Matte Army Green available in Small, Medium, Large, and X-Large.

*Please note that the X-Small and Small Weekenders use 27.5 x 1.65" Maxxis tires and these frame sizes are not compatible with 700c wheels.

Sizing

Small: 5'2" 5'7" height
Medium: 5'7" - 5'10" height
Large: 5'9" - 6'1" height
X-Large: 6'1"+ height



Specs

Frame: 100% Chromoly, Disc, with Rack and Fender mounts (M/L 700c Compatible)
Fork: 100% Chromoly. One-piece Machined Steerer Tube
Handlebar: FSA NS Adventure (S=400mm, M/L=420mm, XL=440mm)
Stem: 6061-T6 Forged Aluminum (60mm S, 70mm M, 80mm L and XL)
Headset: FSA, Sealed Integrated, 45º/45º
Brake Lever: SRAM Apex 1
Brake: Avid BB7 Road
Grips: Fairdale Cork handlebar tape
Saddle: Fairdale Race Seat
Seat Post: Micro Adjust, 27.2mm
Seat Clamp: Fairdale, 30mm
Cranks: SRAM Apex 1 (S=165mm, M & L=172.5mm, XL=175mm)
Chainwheel: 42t, Narrow-Wide
BB Parts: Neco BB-501
Pedals: Odyssey Twisted PC
Rims: 650b, 32-Hole, Aluminum, Double Wall, Tubeless Compatible
Front Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Rear Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Tires (S): 27.5” x 1.65” Maxxis Overdrive
Tires (M/L/XL):
 Maxxis Pace 27.5" x 2.1"
Chain: KMC X11
Cassette: SRAM PG-1130, 11-42T, 11-Speed
R. Shift Lever: SRAM Apex 1, 11-Speed (Rear)
R. Derailleur: SRAM Apex 1, Long Cage, 11-Speed
Shift Cable: Fairdale with Jagwire inline adjuster

Geometry

SizeS (52cm)M (55cm)L (58cm)XL (58cm)
Top Tube (Effective)523mm545mm579mm602cm
Top Tube (Actual)505mm532mm559mm585mm
Seat Tube (BB Center to TT Top)454mm485mm533mm576mm
Seat Tube
(BB Center to TT Center)
414mm445mm493mm536mm
Seat Tube Angle74°73°73°73°
Head Tube Length120mm122mm146mm167mm
Head Tube Angle70°71°71.5°71.5°
Chain Stay Length415mm440mm440mm440mm
Wheelbase1005mm1037mm1058mm1081mm
Standover745mm765mm800mm830mm
Stack517mm565mm589mm609mm
Reach373mm380mm398mm414mm
Fork Length390mm416mm416mm416mm
Fork Offset50mm50mm50mm50mm
BB Drop54mm72mm72mm72mm
Dropout Spacing135mm135mm135mm135mm
BB TypeEnglish 68English 68English 68English 68
Seat Post27.2mm27.2mm27.2mm272.mm
Seat Clamp30mm30mm30mm30mm
Approx. Max Tire Width 27.5"/650b47mm54mm54mm54mm
Approx. Max Tire Width 29"/700cN/A53mm53mm53mm
Wheel Size27.5"27.5"27.5"27.5"
More Details
  • Brand:
    Fairdale
  • Product Code:
    FDX-344-MAGRN
