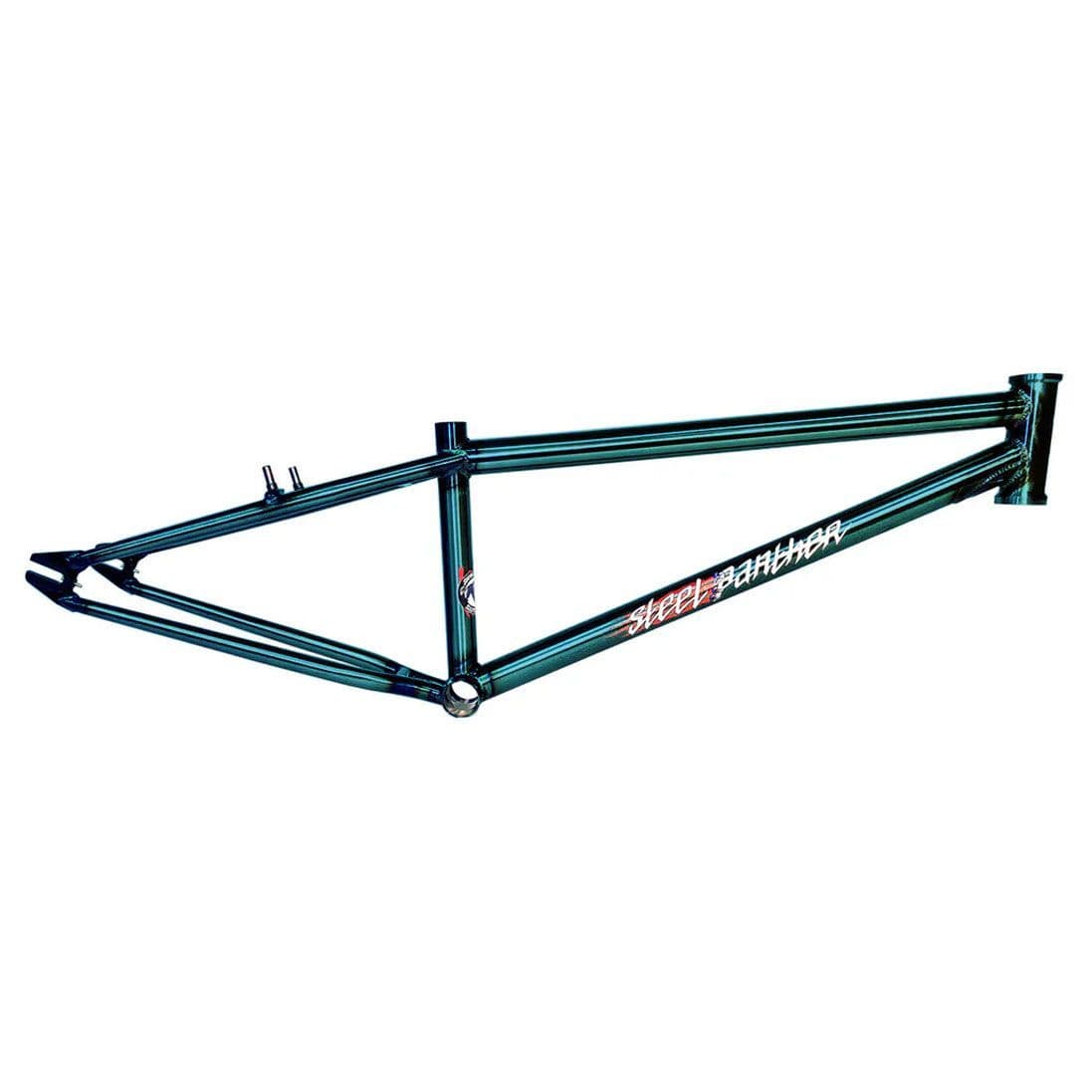

S&M Steel Panther 24" Cruiser Frame 22" Trans Teal

Whether youre keeping the BMX dream alive or chasing that NAG #1 plate the Steel Panther 24" is the ultimate real steel racing chassis. 100% chromoly construction with our butted Thermal-X tube set. Two top tube options with corresponding rear end lengths for each. Euro-BB V-brake mounts 3/8" drops with built-in tensioners and a machined head tube with a gusseted down tube. Updated stay design for improved chain clearance.

• TOP TUBE: 21.5" 22"
• REAR END: 15.25" – 16.25"
• HEAD TUBE ANGLE: 73°
• HEAD TUBE STYLE: Integrated (45°/45° 41.8mm)
• SEAT TUBE ANGLE: 70.5°
• SEAT CLAMP: Traditional Slot
• SEAT POST SIZE: 27.2mm
• BB HEIGHT: 12"
• BB STYLE: 68mm Euro
• STANDOVER HEIGHT: 9"
• BRAKE MOUNTS : V Brake
• DROPOUTS: 3/8" Slot Built In Tensioner
• GYRO TABS: None
• WEIGHT: 4 lb 6.2 oz (1.99 kg) – 4 lb 6.8 oz (2.01 kg)
• TUBESET: Butted Thermal-X
