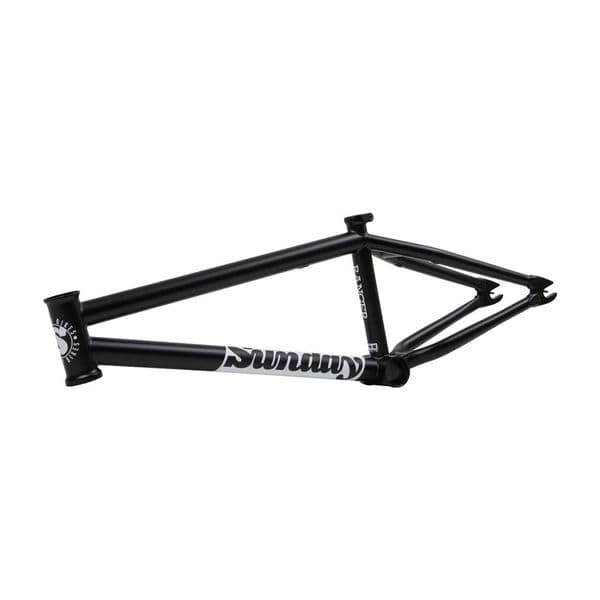

Sunday Ranger Frame 18" - Matte Black

With younger BMX riders continuing to progress at a rapid pace, having a strong and agile frame for them is needed more than ever. Enter the Ranger 18".

Proudly built with many of the legendary features found on Sunday’s aftermarket designs, this full chromoly frame offers a short chainstay for maneuverability and pro-level frame geometry that rides like a scaled down 20" bike. The Ranger 18" is the perfect frame for any serious rider in this size range.

Features

• 100% 4130 Chromoly Frame
• Proven pro-level geometry adjusted for 18” wheels.
• Integrated seat clamp
• Butted Seat Tube & Miter Cut Top Tube:
  A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction.
• Tapered Chain & Seat Stays:
  Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.
• Hollow Dropouts with Chain Tensioners:
  Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal.
• Removable Brake Hardware:
  Proven, removable, brake mounts and cable guides/stops work flawlessly when installed and allow for a sleek overall look when they’re not.

Geometry

Top Tube Lengths: 18.5"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 11.70-12”
Bottom Bracket Height: 10.5”
Standover: 7.7”
Tire Clearance: 2.3”
Head Tube Length: 4.4"
