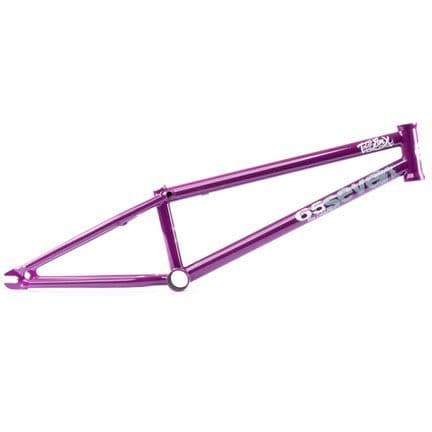

Total BMX 657 X Frame - Purple 20.6"

Total BMX 657 X Frame - Purple

The 657 X frame release is to mark 10 amazing years of Total BMX (2010-2020) , the original 657 Alex Coleborn frame was one of our first frames to be released and most likely the most popular ever!

This frame has been updated for release in 2022, with a contemporary shorter back end and some internal strengthening. We have also added the ovalised chainstays to allow better sprocket/ tyre clearance.

Fans of the original 657 will absolutley love the 657 X!

Full Spec-

• Full Multi Butted 4130 Chromoly tubing
• Standover Height: 6.95” (centre of BB to centre of TT)
• Rear End Length: 12.8” slammed
• Top Tube: 32mmø Multi butted internally gusseted
• Down tube 34.9mmø Multi butted internally gusseted
• Tapered oval chain stays 21mm-17mm (Ovalised for dent resistance and extra sprocket clearance)
• Tapered seat stays 19mm-14mm
• Tyre clearance- 2.35”
• BB Height: 11.5” low and stable
• Headtube: 75º Integrated and heat treated, drilled for gyro tabs. 117mm height
• Dropouts: Heat treated 5mm thick
• Sizes: 20.4”, 20.6”, 21” top tube lengths
• Removable brakeware (available separately)
• Weight: (Black ED, 20.4”) 2.14kg/ 4lbs 11oz
• Warranty: 1 Year
